Ride-On Combination Machine Scrubber-Sweeper JIECHI M20

Home Products Combination Machine

Ride-On Combination Machine Scrubber-Sweeper JIECHI M20

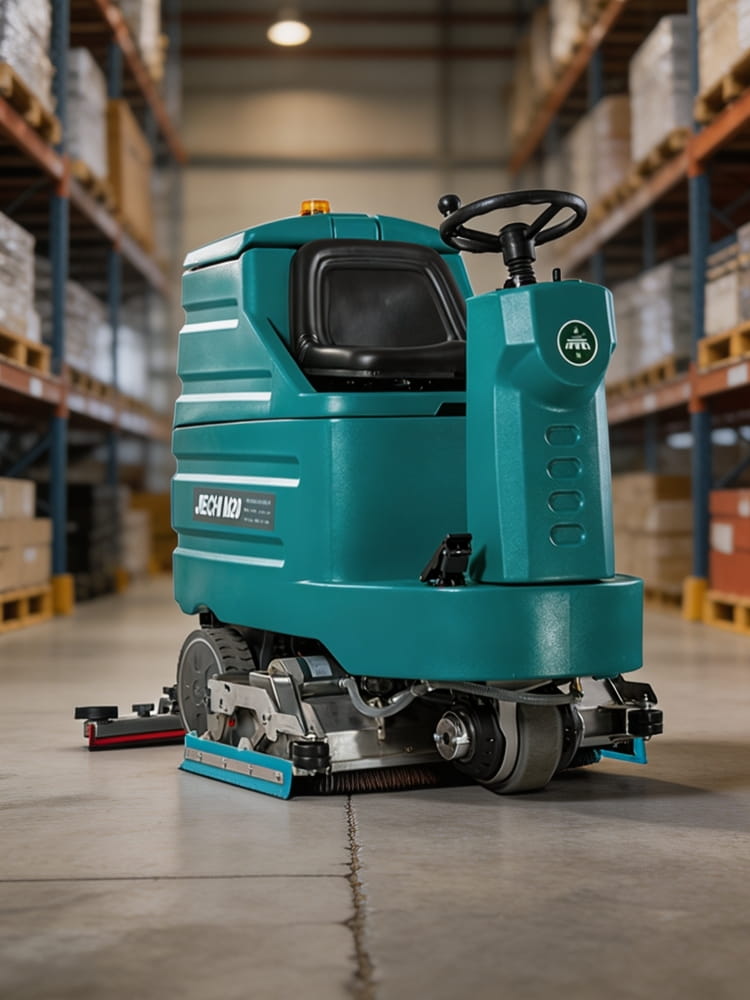

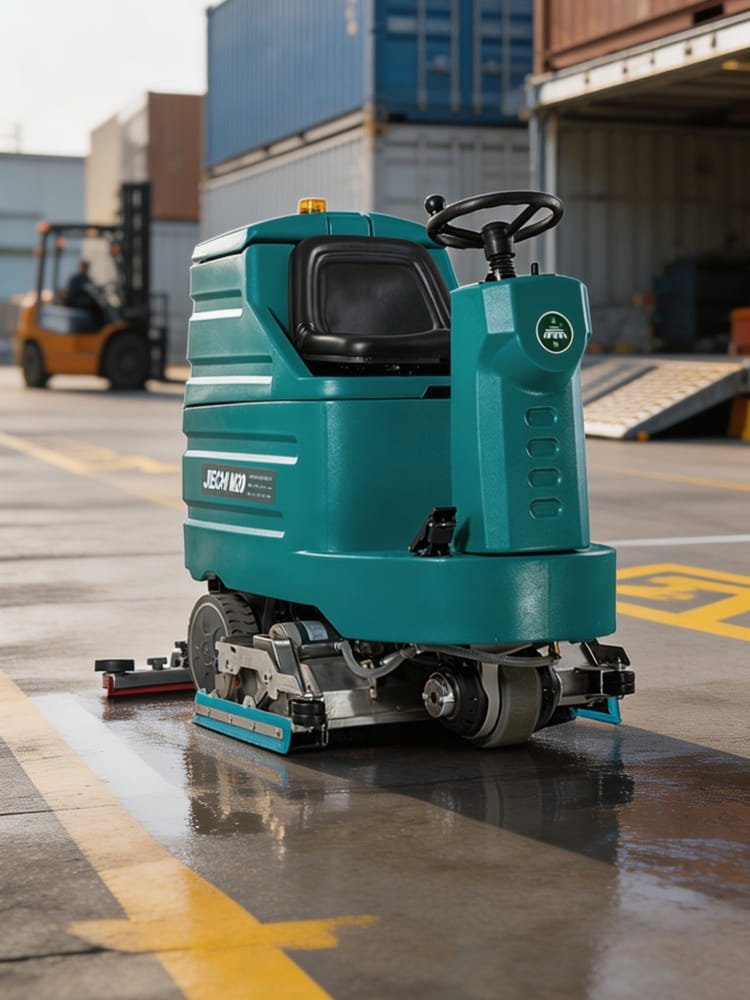

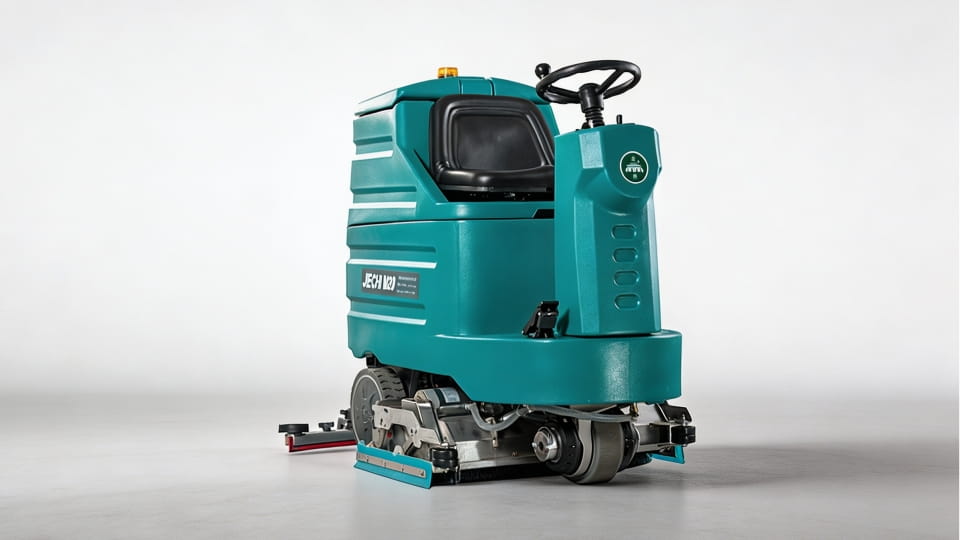

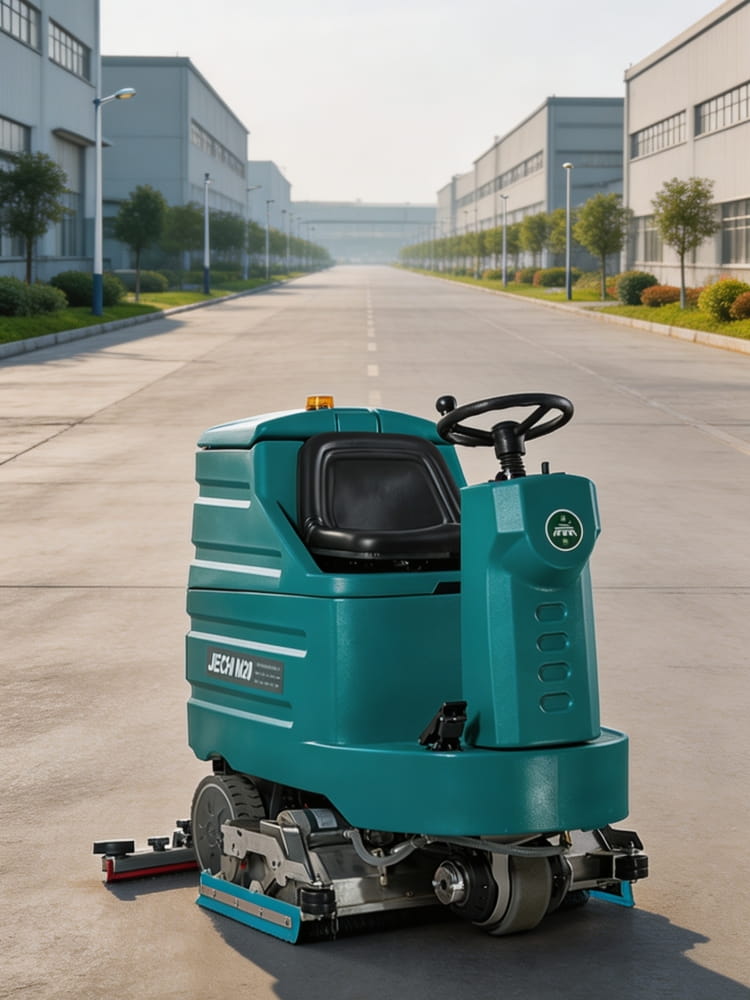

Ride-On Combination Machine Scrubber-Sweeper JIECHI M20

The JIECHI M20 is a heavy-duty floor scrubber designed for large-scale and high-frequency cleaning. It combines powerful floor scrubbing with efficient water recovery to tackle dust, dirt, mud, footprints and common industrial floor stains.The M20 is well suited for large factories, production workshops, logistics warehouses, distribution centers, commercial complexes and parking facilities.

Built for demanding cleaning environments, the M20 helps facilities reduce manual labor, improve cleaning efficiency and establish a more consistent mechanized cleaning process.

  • Model :

    M20
  • Voltage :

    24V/200Ah
  • Cleaning Width :

    900mm
  • Suction Width :

    1080mm
  • Performance :

    5500㎡/h
  • Traction Motor :

    800W
  • Brush Motor :

    560W*2
  • Lifting Motor :

    100W*2
  • Suction Motor :

    500W
  • Size :

    165*90*130cm
  • Weight :

    330kg

The JIECHI M20 is an upgraded heavy-duty integrated cleaning machine engineered for high-frequency and large-scale industrial and logistics cleaning tasks. Optimized comprehensively in power output, working coverage, and continuous operation capability compared with entry-level models, it is equipped with an extended heavy-duty roller brush and enlarged dual water and garbage tanks. Capable of handling heavy dust, large-particle debris, and moderate industrial oil stains in one pass, it solves the pain points of low efficiency and insufficient load capacity of light-duty cleaners. It serves as the standard core cleaning equipment for large industrial parks, logistics yards, and municipal hard road maintenance.



Where It Works Best

Large and medium industrial parks, logistics distribution centers, municipal main hard roads, core hard-ground areas of scenic spots, large parking lots, and commercial plazas. Not applicable for residential and park landscape venues.
  • #
  • #
  • #



Core Engineering & Operational Advantages


  • Extended Heavy-Duty Roller Brush for High-Load

    Conditions Configured with a widened and thickened industrial roller brush and high-torque power system, the M20 delivers larger single-pass cleaning width and stronger stain stripping and debris grabbing force. It perfectly copes with complex mixed pollutants including outdoor large particles, heavy dust, and indoor industrial oil stains for high-intensity daily cleaning.



  • Reinforced Body Structure for Durable High-Frequency Operation

    Built with thickened wear-resistant chassis and anti-collision structures, the whole machine features excellent impact resistance and durability. It can withstand long-term high-frequency and high-load operation in harsh industrial environments with heavy dust and grit, ensuring ultra-stable mechanical performance and low failure rate.



  • Large-Capacity Dual Tanks for Non-Stop Operation

    The upgraded oversized water and garbage tanks greatly extend continuous working time. It reduces frequent shutdowns for water refilling and garbage dumping, significantly improving the overall cleaning efficiency of large-area venues and supporting full-day continuous operation.



  • Low-Noise Pure Electric Zero-Emission Design

    Adopts full electric drive with zero exhaust emission and low operating noise. The full-range water spray dust suppression system completely eliminates secondary dust pollution, fully complying with industrial and municipal environmental protection operation standards.





Suitable Floor / Surface Types


Compatible with indoor cured cement floors, anti-static epoxy floors, non-slip tiled floors, and outdoor concrete, asphalt, and regular brick pavements. Not suitable for rugged uneven roads, loose gravel surfaces, and soft carpet floors.


Maintenance & Daily Operation



Fully empty the sewage and garbage tanks after daily operation to avoid dirt accumulation and blockage. Focus on cleaning residual impurities in roller brush gaps and stains on the squeegee blade to guarantee consistent cleaning and water absorption effects. Conduct regular maintenance on industrial maintenance-free batteries and inspect chassis fasteners.



Technical Specifications

M20

Voltage 24V/200Ah Suction Motor 500W
Cleaning Width 900mm Water Tank 130L/140L
Suction Width 1080mm Traction Power 800W
Capacity of Dustbin 20L Lifting Motor 100W*2
Cleaning Performance 5500m²/h Machine Size 165*90*130cm
Brush Motor 560W*2 Machine Weight 330kg


FAQ

What essential upgrades make the M20 more suitable for large-scale high-frequency cleaning than light-duty models?

The M20 achieves comprehensive upgrades in working width, power performance, tank capacity, and structural durability. The widened roller brush boosts single-time cleaning coverage, while the large-capacity tanks minimize downtime. The industrial-grade battery and reinforced chassis support long-hour high-frequency operation, completely solving the shortcomings of low efficiency and poor load resistance of entry-level machines.

Can the M20 thoroughly clean mixed industrial pollutants in logistics yards?

Absolutely. Equipped with a dual cleaning system of roller brush sweeping and high-pressure water washing, the M20 synchronously completes large-particle debris picking, heavy dust suppression, oil stain flushing, and floor drying. It realizes one-stop thorough cleaning for typical mixed dirt in logistics venues and meets standardized high-frequency maintenance requirements.

Why M20 is reliable in high-dust industrial environments?

M20 features a pure roller-brush mechanical cleaning system and an overall waterproof, dustproof, and corrosion-resistant design, ensuring stable performance during long-term, high-intensity industrial operations while reducing maintenance costs.
